Manual OIA DB Cleanup

1. Truncate Ingestion Tracker DB Data

Delete INGESTION TRACKER DB DATA : These tables are obsolete and not used post 3.5 release (Step is applicable only after post upgrade 3.5 release)

Recommendation is to delete this obsolete tables first and go through the steps to release the disk space

1.1 Steps to Truncate Ingestion Tracker DB Data

Note

This step is applicable only after post upgrade 3.5 release

Starting with the 3.5 release, ingestion-tracker data is saved in pstream without using the database. Therefore, the user can truncate the ingestion-tracker DB data after a week after upgrading to version 3.5.

Please execute the following commands to get the MariDB cluster details and truncate the DB tables of the Ingestion Tracker service that the rdafcli VM is using.

Note

Please Ignore the Message mysql: [Warning] Using a password on the command line interface can be insecure

MARIADB_HOST=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep datadir | awk '{print $3}' | cut -f1 -d'/'`
MARIADB_USER=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep user | awk '{print $3}' | base64 -d`
MARIADB_PASSWORD=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep password | awk '{print $3}' | base64 -d`
IT_DB_NAME=`mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST -P3307 -e "show databases;" | grep ingestion_tracker`

Note

On failure of any of the below mentioned Truncate Commands for Sourceevent, Event & Eventtrail execution, Please execute the Commands again to truncate the data.

Truncate Sourceevent Table

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST -P3307 -e "use $IT_DB_NAME; truncate sourceevent;"

Truncate Event Table

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST -P3307 -e "use $IT_DB_NAME; truncate event;"

Truncate Eventtrail Table

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST -P3307 -e "use $IT_DB_NAME; truncate eventtrail;"

Command to verify if the data truncated from sourceevent, event & eventtrail tables

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_1 -P3307 -e "use $IT_DB_NAME; select count(id) as sourceventcount from sourceevent;select count(id) as eventcount from event;select count(id) as eventtrailcount from eventtrail;"

Example Output

mysql: [Warning] Using a password on the command line interface can be insecure.

+-----------------+
| sourceventcount |
+-----------------+
|               0 |
+-----------------+
+------------+
| eventcount |
+------------+
|          0 |
+------------+
+-----------------+
| eventtrailcount |
+-----------------+
|               0 |
+-----------------+

Note

Please Ignore the Message mysql: [Warning] Using a password on the command line interface can be insecure

1.2 Steps to Reduce the Size of the MySQL DB Disk for Ingestion Tracker

Once all the data is purged from the alerthistory DB table, user needs to execute the below mentioned commands.
DB doesn’t free up the used disk immediately. In order to reclaim the memory instantly please run the following commands tables from where rdafcli VM is running

MARIADB_HOST_1=`cat /opt/rdaf/rdaf.cfg | grep -A4 mariadb | grep host | awk '{print $3}'| cut -d "," -f 1`

MARIADB_HOST_2=`cat /opt/rdaf/rdaf.cfg | grep -A4 mariadb | grep host | awk '{print $3}'| cut -d "," -f 2`

MARIADB_HOST_3=`cat /opt/rdaf/rdaf.cfg | grep -A4 mariadb | grep host | awk '{print $3}'| cut -d "," -f 3`

MARIADB_USER=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep user | awk '{print $3}' | base64 -d`

MARIADB_PASSWORD=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep password | awk '{print $3}' | base64 -d`

IT_DB_NAME=`mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_1 -P3307 -e "show databases;" | grep ingestion_tracker`

Note

Check For Disk Usage

Before executing optimize command, Run df -kh on mysql Infra node and check for /var/mysql disk size.
On Successful execution of below command run df -kh command again and verify the disk space for /var/mysql. For Example, If disk size is 100GB before executing the command, It should get reduced based on the ingestion-tracker disk usage.

Execute the below optimize command on MARIADB_HOST_1

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_1 -P3307 -e "use $IT_DB_NAME; set global wsrep_osu_method='RSU';optimize table sourceevent;optimize table event;optimize table eventtrail;set global wsrep_osu_method='TOI';"

Execute the below optimize command on MARIADB_HOST_2

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_2 -P3307 -e "use $IT_DB_NAME; set global wsrep_osu_method='RSU';optimize table sourceevent;optimize table event;optimize table eventtrail;set global wsrep_osu_method='TOI';"

Execute the below optimize command on MARIADB_HOST_3

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_3 -P3307 -e "use $IT_DB_NAME; set global wsrep_osu_method='RSU';optimize table sourceevent;optimize table event;optimize table eventtrail;set global wsrep_osu_method='TOI';"

Note

On failure of commands execution please execute the optimize commands again on the respective MARIA_DB_HOST command

Example Output

mysql: [Warning] Using a password on the command line interface can be insecure.
+----------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| Table                                                          | Op       | Msg_type | Msg_text                                                          |
+----------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| 61b1a5aeedad4852b92ee40a31b3e2c5_ingestion_tracker.sourceevent | optimize | note     | Table does not support optimize, doing recreate + analyze instead |
| 61b1a5aeedad4852b92ee40a31b3e2c5_ingestion_tracker.sourceevent | optimize | status   | OK                                                                |
+----------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
+----------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| Table                                                    | Op       | Msg_type | Msg_text                                                          |
+----------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| 61b1a5aeedad4852b92ee40a31b3e2c5_ingestion_tracker.event | optimize | note     | Table does not support optimize, doing recreate + analyze instead |
| 61b1a5aeedad4852b92ee40a31b3e2c5_ingestion_tracker.event | optimize | status   | OK                                                                |
+----------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
+---------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| Table                                                         | Op       | Msg_type | Msg_text                                                          |
+---------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| 61b1a5aeedad4852b92ee40a31b3e2c5_ingestion_tracker.eventtrail | optimize | note     | Table does not support optimize, doing recreate + analyze instead |
| 61b1a5aeedad4852b92ee40a31b3e2c5_ingestion_tracker.eventtrail | optimize | status   | OK                                                                |
+---------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+

Note

Please Ignore the Message mysql: [Warning] Using a password on the command line interface can be insecure

2. Manual Purge History Alerts

Problem Statement

Until 3.5 release

The purge alerts history job is currently failing, leading to continuous growth of the alerthistory table. As a result, alerts are not being purged according to the configured settings. To prevent database bloat and ensure alert processing remains unaffected, a custom cleanup job should be scheduled at regular intervals (preferably once every 3 months) to remove stale data from the alerthistory table.
Starting from versions 3.8.0, 8.1.0 & 8.1.0.1

As part of ongoing performance improvements, the alerthistory database table now retains only the last 1 hour of CLEARED alert data. In contrast, the corresponding PStream continues to retain CLEARED alerts based on the configured purge settings. A scheduled job runs periodically to enforce this behavior, ensuring that only the most recent 1 hour of data is maintained in the alerthistory table.
Custom Job Execution Before Upgrade

a) A custom job must be executed before starting the upgrade process to purge alerthistory data offline and reduce its volume to a manageable size.

b) Ideally, the custom job should be run one week prior to the upgrade and then executed again one day before the upgrade begins.

2.1 Prerequisites To Execute Script

Check and Create oia-alerts-payload Pstream

- First, check if the oia-alerts-payload pstream already exists within the system. Navigate to Main Menu --> Configuration --> RDA Administration --> Persistent Streams to verify its presence.
Create Pstream if Missing

- If the oia-alerts-payload pstream is not found, create it using the definition provided below. To create a new pstream, go to Main Menu --> Configuration --> RDA Administration --> Persistent Streams --> Add using the appropriate definition.

Click to view the definition of oia-alerts-payload pstream


  {
    "unique_keys": [
        "a_id"
    ],
    "_mappings": {
        "properties": {
            "a_created_ts": {
                "type": "date"
            },
            "a_updated_ts": {
                "type": "date"
            },
            "a_source_payload_compressed": {
                "type": "boolean"
            },
            "a_source_payload": {
                "type": "text",
                "index": false
            },
            "a_sourceeventreceivedat_ts": {
                "type": "date"
            },
            "a_raisedreceivedat_ts": {
                "type": "date"
            },
            "a_clearreceivedat_ts": {
                "type": "date"
            },
            "a_cleared_ts": {
                "type": "date"
            }
        }
    },
    "default_values": {},
    "case_insensitive": true
}

Example Screenshot

Script needs to be executed inside a service container. Preferably configuration-service which has less amount of load
Download PurgeHistoryAlertsJob.py script from below given location

wget https://macaw-amer.s3.us-east-1.amazonaws.com/releases/rdaf-platform/1.3.3/purge_history_alerts_job.tar

Use the following command to untar the downloaded file purge_history_alerts_job.tar.

tar -xvf purge_history_alerts_job.tar

Change the directory to purge_history_alerts_job

cd purge_history_alerts_job

The purge_history_alerts_job directory contains the following scripts, which will be used for purging historical alerts, use the command mentioned below which is used to purge historical alerts from DB.

PurgeHistoryAlertsJob.py

copy the downloaded file inside the configuration-service container. Command

docker cp PurgeHistoryAlertsJob.py <configuration-service-container-id>:/tmp

2.2 Purge Job Executes in Phases

2.2.1 Copy History Alerts from AlertHistory Table to Temp Table

Copy historical alert data from the AlertHistory table into the temp_alerthistory table.

a) Action used to trigger phase - COPY_TO_TEMP_TABLE.

b) Drops already created a temp_alerthistory table if it exists.

c) Creates temp_alerthistory with required columns for purge job.

d) Copies data from alerthistory table to temp_alerthistory table.

e) Copies alerthistory data to the oia-alerts-payload stream when the publishToAlertsPayloadToStream attribute is specified during command execution.
Run the PurgeHistoryAlertsJob.py script in the background to copy alert data from the alerthistory table to the temp_alerthistory table.
Commands To Execute Script
- Command to run prior to the 3.8 & 8.0 release

  Command to copy all data to temp_alerthistory table from alerthistory table.
```
nohup python PurgeHistoryAlertsJob.py  --projectId <projectId> --action COPY_TO_TEMP_TABLE &
```
- Command to run for version 3.8.0, 8.1.0 and 8.1.0.1

  Command to copy all data to temp_alerthistory table and alert payload pstream from alerthistory table.
```
nohup python PurgeHistoryAlertsJob.py  --projectId <projectId> --action COPY_TO_TEMP_TABLE --publishToAlertsPayloadToStream TRUE &
```
Note

In case of any failure while executing COPY_TO_TEMP_TABLE step, check for the status for which copying failed and rerun the copy command again targeting specifc status only.
- Sample logs to check for script failure while copying data action:
```
2025-03-24 13:36:56,764 [PID=138013:TID=MainThread:__main__:copyToTempTable:258] ERROR - Failed to execute copying alert history data to temp table for projectId:833e7a3e-deec-11ef-9da7-22e179ae2150, status: CORRELATED
```
- Sample command to execute for specific status
```
nohup python PurgeHistoryAlertsJob.py  --projectId <projectId> --action COPY_TO_TEMP_TABLE --publishToAlertsPayloadToStream TRUE --copyDataForStatus CORRELATED –createTempTable FALSE &
```
Allowed values for copyDataForStatus: CORRELATED, CLEARED, CORRELATING, SUPPRESSED, SUPPRESS_FLAPPING, ACTIVE, AGGREGATE
Note

Estimated completion time for copying data to the temporary temp_alerthistory table.
- Copying 6,400,000 records from the alerthistory table to Pstream may take approximately 7 hours to complete.

Parameters

Parameter Name	Description
`projectId`	Specify the Project ID.
`purgeInterval`	Define the duration for which alerts should be purged.
`purgeIntervalUnit`	Set the unit for the purge interval (hours or days)
`copyDataForStatus`	Copy alerts data to temp table/pstream for the given status, Status can be comma separated. Allowed values `CORRELATED`, `CLEARED`, `CORRELATING`, `SUPPRESSED`, `SUPPRESS_FLAPPING`, `ACTIVE`, `AGGREGATE`
`publishToAlertsPayloadToStream`	Publish to `oia-alerts-payload` PStream before copying data to `temp_alerthistory` table. Allowed values TRUE/FALSE. This parameter should be passed for `COPY_TO_TEMP_TABLE` action only.
`createTempTable`	Creates temporary temp_alerthistory table. Possible values TRUE/FALSE. Defaults to TRUE. If no parameter is specified, the command will drop any existing temp_alerthistory table and create a new one.

Job Completion Log Example

2024-11-04 07:17:17,563:__main__:120:INFO:MainThread:Total time taken to copy alerts from table: alerthistory for project:e62a316a-c598-11ee-9b1a-ca8d9d10a565 : 4017 Millis

2.2.2 Purge Alerts From History Table

Once the alerts are successfully copied, run the purge command to clear them from the alerthistory table.

a) Action used to trigger phase - PURGE_HISTORY_ALERTS.

b) Purge alerts from the alerthistory table for the given purge interval.

c) The purgeLimit parameter allows the user to limit how many alerts are purged during the current run. For instance, if a user has a lot of alerts that need to be removed, it is recommended that they be removed in batches, such as 10,000 in a single run.

d) Purge command needs to be executed manually multiple times until all the alerts are purged from alerthistory table.
Run the PurgeHistoryAlertsJob.py script in the background to delete historical alerts from the system.

Note

Purging 100,000 records from the alerthistory table may take approximately 1 hour to complete.

Commands To Execute Script
- Command to run prior to the 3.8 & 8.0 release

  Execute the PurgeHistoryAlertsJob.py script using nohup to run it in the background, specifying the project ID, purge interval and unit, purge limit, and the action to purge history alerts.
```
nohup python PurgeHistoryAlertsJob.py  --projectId <projectId> --purgeInterval <Interval to purge data> --purgeIntervalUnit days --purgeLimit 100000 --action PURGE_HISTORY_ALERTS &
```
Note

purgeInterval - Value should be configured settings value of Alerts & Incidents Data Retention in Configurations.

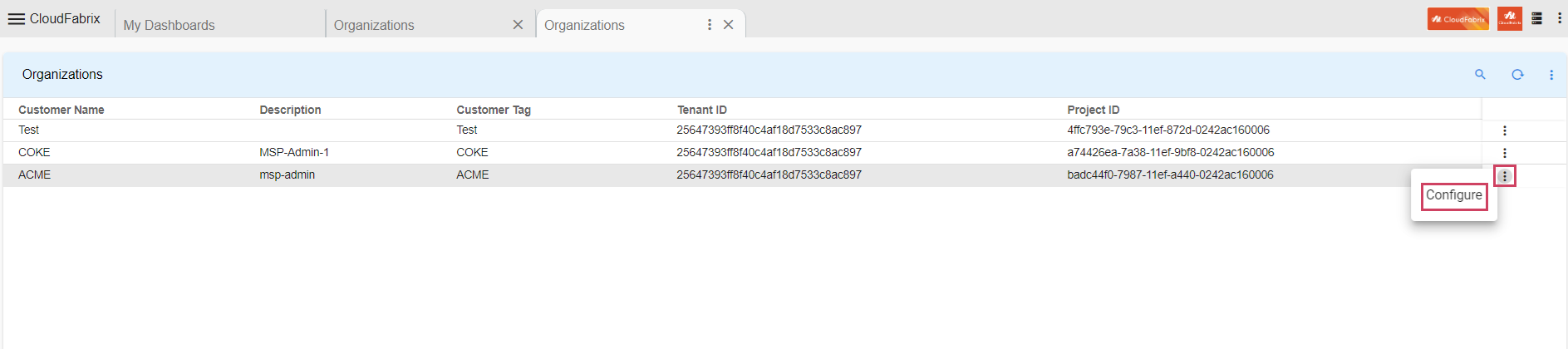

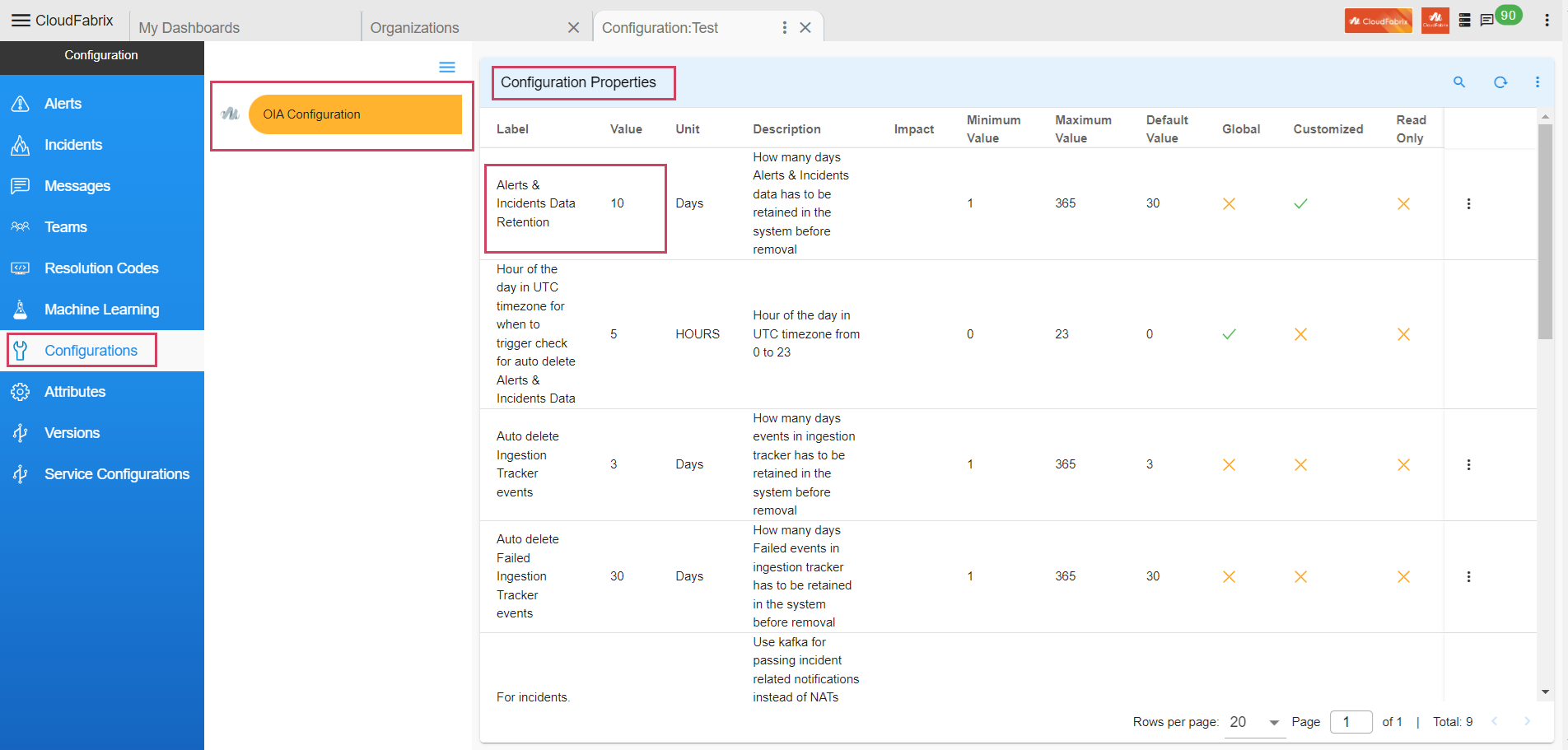

Navigation Path to fetch Alerts & Incidents Data Retention - Configuration → Apps Administration → Organizations → Configure → Configurations → Alerts & Incidents Data Retention.
- Command to run for version 3.8.0, 8.1.0 and 8.1.0.1

  Execute the PurgeHistoryAlertsJob.py script using nohup to run it in the background, specifying the project ID, purge interval and unit, purge limit, and the action to purge history alerts.
```
nohup python PurgeHistoryAlertsJob.py --projectId <projectId> --purgeInterval <Interval to purge data> --purgeIntervalUnit <unit to purge hours/days> --purgeLimit <limit to purge no. of alerts> --action PURGE_HISTORY_ALERTS &
```
Purge History Alerts Command Examples

a) Using Days purgeIntervalUnit
```
nohup python PurgeHistoryAlertsJob.py  --projectId <projectId> --purgeInterval 90 --purgeIntervalUnit days --purgeLimit 100000 --action PURGE_HISTORY_ALERTS &
```
b) Using Hours as purgeIntervalUnit
```
nohup python PurgeHistoryAlertsJob.py  --projectId <projectId> --purgeInterval 1 --purgeIntervalUnit hours --purgeLimit 100000 --action PURGE_HISTORY_ALERTS &
```

Parameters

Parameter Name	Description
`projectId`	Specify the Project ID.
`purgeInterval`	This parameter enhances system performance and alert database management by allowing you to specify a duration after which resolved or outdated alerts are automatically removed. For example, setting --purgeInterval 7 configures the system to purge alerts that have been resolved or inactive for more than seven days.
`purgeIntervalUnit`	Set the unit for the purge interval (hours or days).
`purgeLimit`	Sets the maximum number of alerts to purge per run, with a recommended range of 10,000 to 100,000. Although you specify the purgeLimit, the script processes data in internal batches of 100 alerts each to minimize any impact on alert processing.
`action`	`PURGE_HISTORY_ALERTS` Indicates the action to perform historical alert purging.

Job Completion Log Example

2024-11-02 05:01:01,671:__main__:228:INFO:MainThread:Total No. of alerts before purging: 2498975 and after purging: 2488975 for project id:12345 , purgeInterval:15 found to delete before-date: 2024-10-18 04:52:08.168000. took: 2604 Millis

2024-11-02 05:01:01,671:__main__:230:INFO:MainThread:Completed purge historical alerts job took:533503 Millis

Log Message Showing Alerts to Purge

2024-11-04 06:04:51,725:__main__:163:INFO:MainThread:Total No. of alerts for project id:e62a316a-c598-11ee-9b1a-ca8d9d10a565, purgeIntervals:15 found to delete before-date: 2024-10-20 06:04:49.219000 is: 1688975. took: 2506 Millis

Important

Purging 100,000 alerts takes approximately one hour. To purge all alerts within a specified time range from the alerthistory table, this command must be executed repeatedly.

2.3 Steps to Verify the No. of Alerts to Purge

Run the below mentioned command

python PurgeHistoryAlertsJob.py  --projectId <projectId> --purgeInterval <Interval to purge data> --purgeIntervalUnit <unit to purge hours/days> --action GET_PURGE_ALERTS_COUNT

Example Output

(Below log message shows number of alerts left to purge)

2024-11-05 06:42:41,015:__main__:229:INFO:MainThread:No. of alerts to purge: 8974 for project id:e62a316a-c598-11ee-9b1a-ca8d9d10a565, purgeIntervalDays:1 found to delete before-date: 2024-11-04 06:42:41. took: 15 Millis

Observations

Check if the UI is loading properly and alerts are processed.
Check in logs if there are any deadlocks of the Alert-Processor. String to check from logs Deadlock

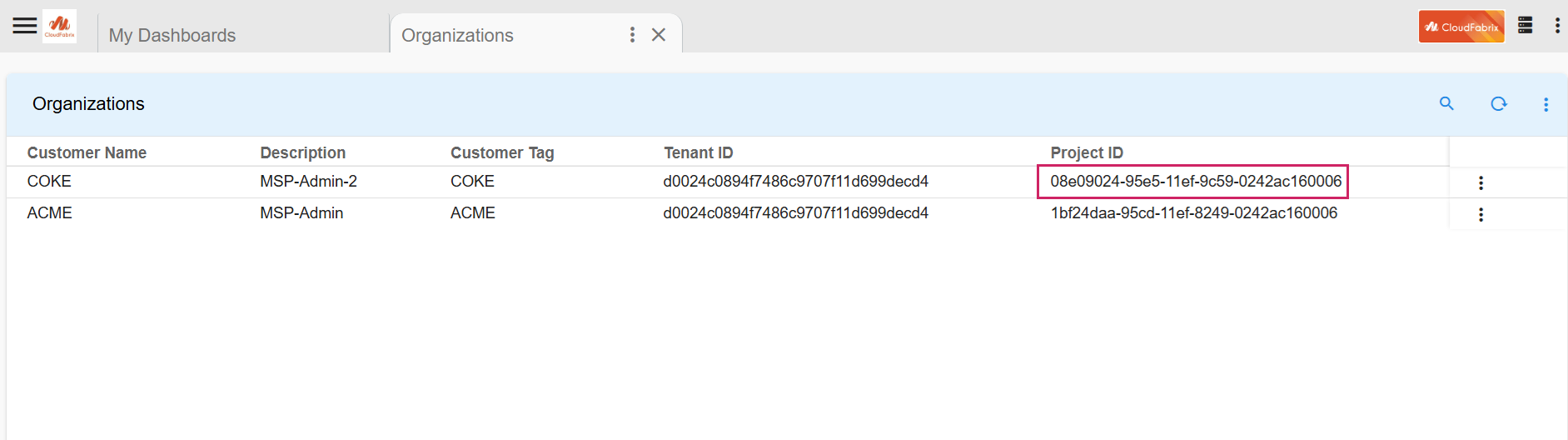

2.4 Path To Get Project Id

Go to Main Menu → Configuration → Apps Administration

Example

2.5 Logging

When the script is executed, a log file is generated under the mount path /opt/rdaf/logs/
Logs are stored in a folder named using the timestamp of the job execution, with the format purge_history_job_<Month>_<Day>_<Year>_<HH>_<MM>_<SS>

Example

purge_history_job_Mar_24_2025_18_23_51

Important

In Kubernetes environments, file-based logging is disabled. As a result, logs for script execution will not be available in the usual log files. Please refer to the nohup.out file for tracking the job status and output.

Info

Script Failure Use Case

In case of script failure, Please re-run the script to trigger purge action again.

In case of script failure in COPY_TO_TEMP_TABLE action, check for below error messages in the logs. Check the logs to identify the status for which copying failed. Run the script for that failed status only. Command to execute script:

nohup python PurgeHistoryAlertsJob.py  --projectId <projectId> --action COPY_TO_TEMP_TABLE --publishToAlertsPayloadToStream TRUE --copyDataForStatus <comma separated status> &

Sample logs to check for script failure while copying data action:

2025-03-24 13:36:56,764 [PID=138013:TID=MainThread:__main__:copyToTempTable:258] ERROR - Failed to execute copying alert history data to temp table for projectId:833e7a3e-deec-11ef-9da7-22e179ae2150, status: CORRELATED.

Observations During Script Execution

a) Ensure the UI is loading correctly and alerts are being processed without delay.

b) Monitor logs for any signs of alert processor deadlocks.

c) Look for the keyword "Deadlock" in the logs to identify potential issues.

2.6 Steps to Reduce the Size of the MySQL DB Disk for Alert Processor

Important

As outlined in the MARIA DB Documentation,optimizing a table requires recreating it, which helps reclaim unused disk space and refreshes index statistics
Therefore, the recommended approach is to first remove any unnecessary rows before executing the optimize table command.
Recreating the table is necessary for optimization, but it will render the UI temporarily inaccessible. Therefore, this process should be scheduled during a maintenance window to accommodate the application's downtime.
Disk usage when the optimize command was executed:

When executing the OPTIMIZE command, disk space usage will roughly double the current amount due to the table recreation process. For example, if a table currently uses 10GB, approximately 20GB or more of free space will be required.

Once all the data is purged from the alerthistory DB table, user needs to execute the below mentioned commands.
DB doesn’t free up the used disk immediately. In order to reclaim the memory instantly please run the following commands tables from where rdafcli VM is running

MARIADB_HOST_1=`cat /opt/rdaf/rdaf.cfg | grep -A4 mariadb | grep host | awk '{print $3}'| cut -d "," -f 1`
MARIADB_HOST_2=`cat /opt/rdaf/rdaf.cfg | grep -A4 mariadb | grep host | awk '{print $3}'| cut -d "," -f 2`
MARIADB_HOST_3=`cat /opt/rdaf/rdaf.cfg | grep -A4 mariadb | grep host | awk '{print $3}'| cut -d "," -f 3`
MARIADB_USER=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep user | awk '{print $3}' | base64 -d`
MARIADB_PASSWORD=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep password | awk '{print $3}' | base64 -d`
AP_DB_NAME=`mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_1 -P3307 -e "show databases;" | grep alert_processor`

Note

Check For Disk Usage

Before executing optimize command, Run df -kh on mysql Infra node and check for /var/mysql disk size.
On Successful execution of below command run df -kh command again and verify the disk space for /var/mysql. For Example, If disk size is 100GB before executing the command, It should get reduced based on the purged alerts count.

Execute the below optimize command on MARIADB_HOST_1

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_1 -P3307 -e "use $AP_DB_NAME; set global wsrep_osu_method='RSU';optimize table alerthistory;set global wsrep_osu_method='TOI';"

Execute the below optimize command on MARIADB_HOST_2

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_2 -P3307 -e "use $AP_DB_NAME; set global wsrep_osu_method='RSU';optimize table alerthistory;set global wsrep_osu_method='TOI';"

Execute the below optimize command on MARIADB_HOST_3

mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST_3 -P3307 -e "use $AP_DB_NAME; set global wsrep_osu_method='RSU';optimize table alerthistory;set global wsrep_osu_method='TOI';"

Note

On failure of commands execution please execute the optimize commands again on the respective MARIA_DB_HOST command

Example Output

mysql: [Warning] Using a password on the command line interface can be insecure.
+---------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| Table                                                         | Op       | Msg_type | Msg_text                                                          |
+---------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+
| 54454808c6b74a99827dfc2bb0f4cdb3_alert_processor.alerthistory | optimize | note     | Table does not support optimize, doing recreate + analyze instead |
| 54454808c6b74a99827dfc2bb0f4cdb3_alert_processor.alerthistory | optimize | status   | OK                                                                |
+---------------------------------------------------------------+----------+----------+-------------------------------------------------------------------+

Note

Please Ignore the Message mysql: [Warning] Using a password on the command line interface can be insecure
