Form Control Types Documentation

This Documentation describes various Form Control Types with detailed examples of their structure and usage in JSON format. These can be used for building forms dynamically with different controls, depending on the input needed.

1. BOOLEAN_FIELD

1.1 Description

A control used to represent a boolean value (true/false).

1.2 Use Case

Use this control for toggling features, such as enabling or disabling a schedule.

Example

{
  "fieldId": "expired",
  "label": "Expired",
  "description": "Please confirm the expiration status",
  "required": false,
  "default": true,
  "dataType": "boolean",
  "hidden": false,
  "editable": true,
  "controlType": "BOOLEAN_FIELD"
}

Example Screenshot

2. COMBO_BOX

2.1 Description

A dropdown control allowing users to select from predefined options or values fetched from a stream.

2.2 Use Case

Use this control to display a list of options, either inline or dynamically loaded via pstream/dataset.

Note

lovSourceType:

Accepted values: inline (default) or pstream/dataset.

lovSourceParams:

Required if lovSourceType is not inline.
name: Name of the pstream/dataset - Required.
valueColumn: Column which contains the lov identifier - Required.
labelColumn: Column which contains the lov displayName - Optional.
query: cfxql query to filter the pstream/dataset - Optional.
max_rows: Maximum number of values to retrieve. (Default is 100) - Optional.

lovValues:

Values given in lovValues will be appended to the results coming from the pstream/dataset above.
If the same identifier is found in both pstream/dataset and lovValues, the identifier given in lovValues takes precedence.

Example

{
  "help": "Status",
  "dataType": "string",
  "controlType": "COMBO_BOX",
  "required": true,
  "editable": true,
  "label": "Status",
  "hidden": false,
  "fieldId": "city",
  "lovSourceType": "pstream",
  "lovSourceParams": {
    "name": "main",
    "valueColumn": "city",
    "labelColumn": "city",
    "query": "city contains 'hyderabad'"
  },
  "lovValues": [
    {
      "identifier": "sample1",
      "displayName": "Sample1"
    },
    {
      "identifier": "Sample2",
      "displayName": "Sample2"
    },
    {
      "identifier": "Sample3",
      "displayName": "Sample3"
    }
  ]
}

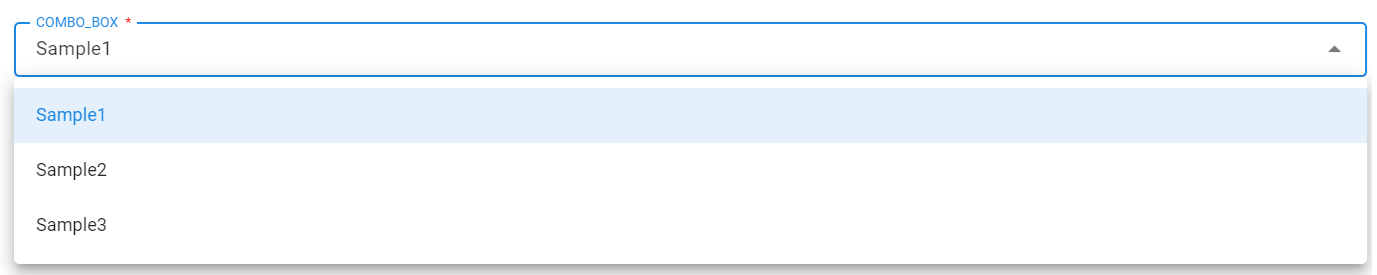

Example Screenshot

3. RADIO_BUTTON

3.1 Description

A set of radio buttons for single selection among predefined options.

3.2 Use Case

Useful when the user needs to select one option from a small list of predefined choices.

Example

{
  "fieldId": "inputFieldId",
  "label": "Input Field",
  "help": "Input Field",
  "dataType": "string",
  "hidden": false,
  "editable": true,
  "required": true,
  "lovValues": [
    {
      "identifier": "device1",
      "displayName": "Device 1"
    },
    {
      "identifier": "device2",
      "displayName": "Device 2"
    },
    {
      "identifier": "device3",
      "displayName": "Device 3"
    }
  ],
  "controlType": "RADIO_BUTTON"
}

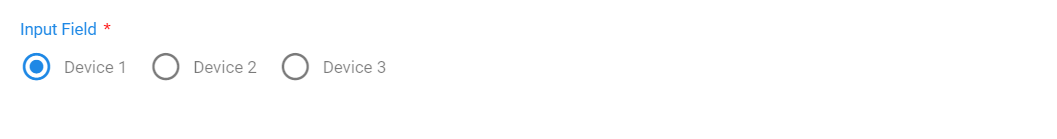

Example Screenshot

4. TEXT_FIELD

4.1 Description

A simple text input field.

4.2 Use Case

Used when textual information needs to be input, such as IP addresses or user information.

Example

{
  "fieldId": "ip_address",
  "label": "Please Add the device IP",
  "help": "Please Add the device IP",
  "dataType": "string",
  "controlType": "TEXT_FIELD",
  "hidden": false,
  "editable": true,
  "required": false
}

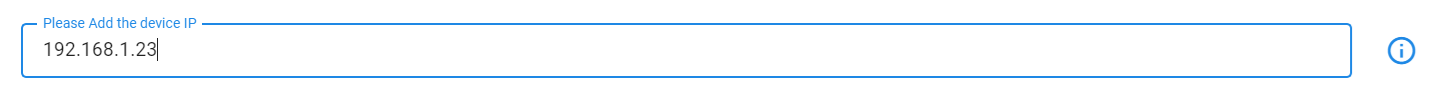

Example Screenshot

Example (Password Input)

{
  "fieldId": "newPassword",
  "label": "New Password",
  "help": "New Password of User",
  "dataType": "string",
  "controlType": "TEXT_FIELD",
  "controlPropertyList": [
    {
      "attribute": "input-type",
      "value": "password"
    },
    {
      "attribute": "layout-group-id",
      "value": "newPassword"
    },
    {
      "attribute": "layout-percent",
      "value": "100"
    }
  ],
  "hidden": false,
  "editable": true,
  "required": true
}

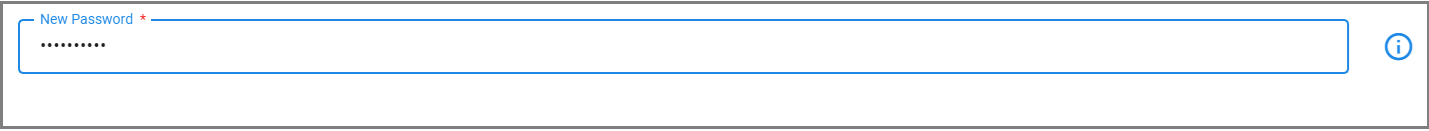

Example Screenshot

Example (Default Input)

{
  "fieldId": "device_ip",
  "label": "Please Add the device IP if not below",
  "help": "Please Add the device IP if not below",
  "dataType": "string",
  "controlType": "TEXT_FIELD",
  "defaultValue": "10.11.123.123",
  "hidden": false,
  "editable": true,
  "required": false
}

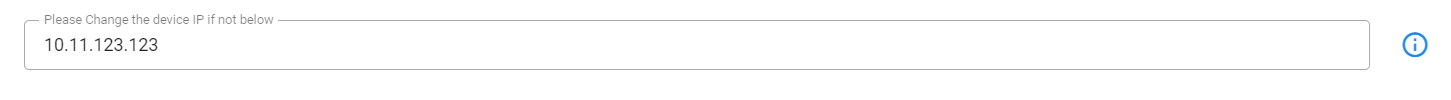

Example Screenshot

4.3 Trim User Input

The trimUserInput control property allows trimming of leading and trailing whitespace from the input value in a TEXT_FIELD. When set to true, the UI will automatically trim the user’s input before sending it in the form data. This helps avoid issues with accidental spaces in fields like usernames, passwords, or codes. By default, trimming is not enabled, allowing the user’s input to be sent exactly as entered.

Usage

Add the following control property to your field definition

{
  "attribute": "trimUserInput",
  "value": true
}

Example

{
  "fieldId": "name",
  "label": "Name",
  "help": "Name of User",
  "dataType": "string",
  "controlType": "TEXT_FIELD",
  "controlPropertyList": [
        {
      "attribute": "trimUserInput",
      "value": true
    }
  ],
  "hidden": false,
  "editable": true,
  "required": true
}

5. LABEL

5.1 Description

le label for displaying static information.

5.2 Use Case

Use this when you need to display static information to users without requiring input.

Example

{
  "help": "Do you want to try and help the user",
  "dataType": "string",
  "controlType": "LABEL",
  "required": false,
  "editable": false,
  "label": "Do you want to try and help the user",
  "hidden": false,
  "fieldId": "monitor"
}

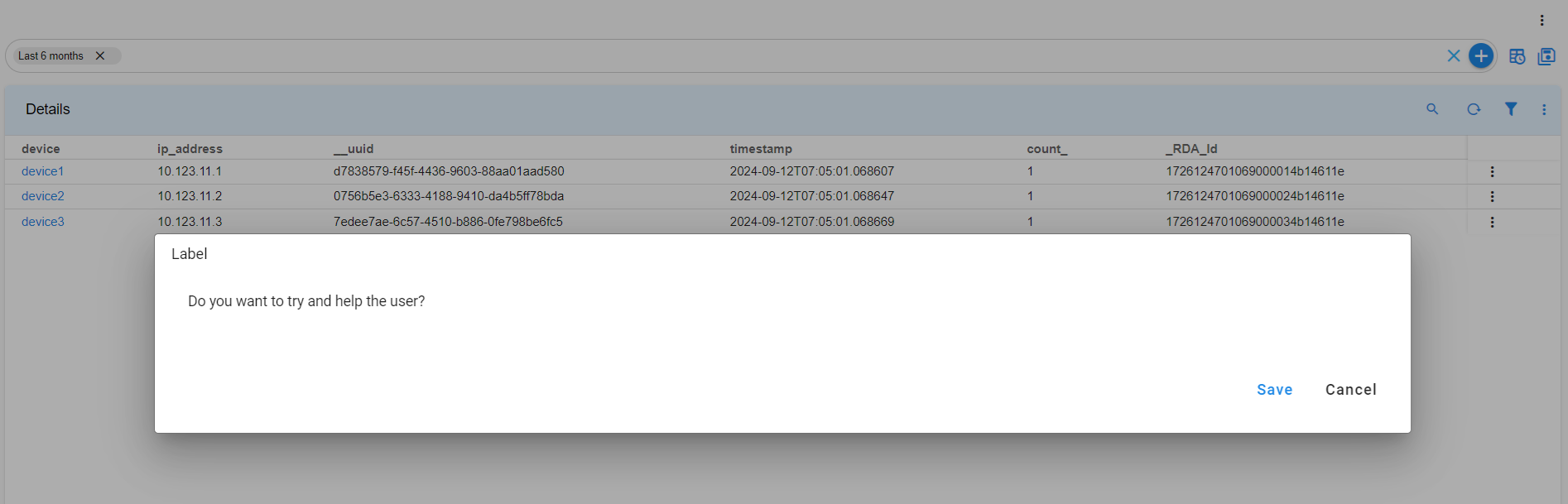

Example Screenshot

6. FILE_UPLOAD

6.1 Description

A control used to upload files.

6.2 Use Case

Use this control when users need to upload files to the system.

Example

{
  "help": "Choose file to upload",
  "dataType": "string",
  "required": true,
  "editable": true,
  "label": "Choose file to upload",
  "controlType": "FILE_UPLOAD",
  "hidden": false,
  "fieldId": "fileUpload"
}

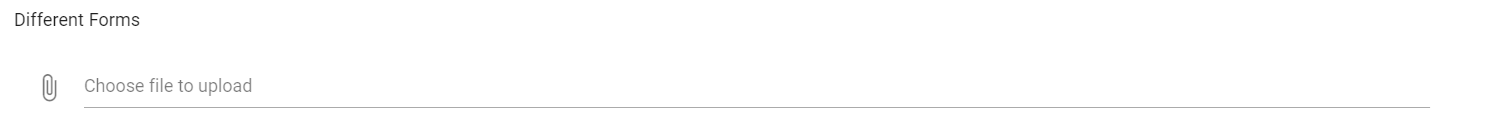

Example Screenshot

7. PYTHON_EDITOR

7.1 Description

A code editor for writing Python or other programming languages.

7.2 Use Case

Use this control for inputting rules, scripts, or configuration files.

Example

{
  "fieldId": "pythonFieldId",
  "label": "Code Editor",
  "description": "Code Editor",
  "required": true,
  "isSecret": false,
  "dataType": "string",
  "hidden": false,
  "editable": true,
  "controlType": "PYTHON_EDITOR",
  "controlPropertyList": [
    {
      "attribute": "lang",
      "value": "json"
    }
  ]
}

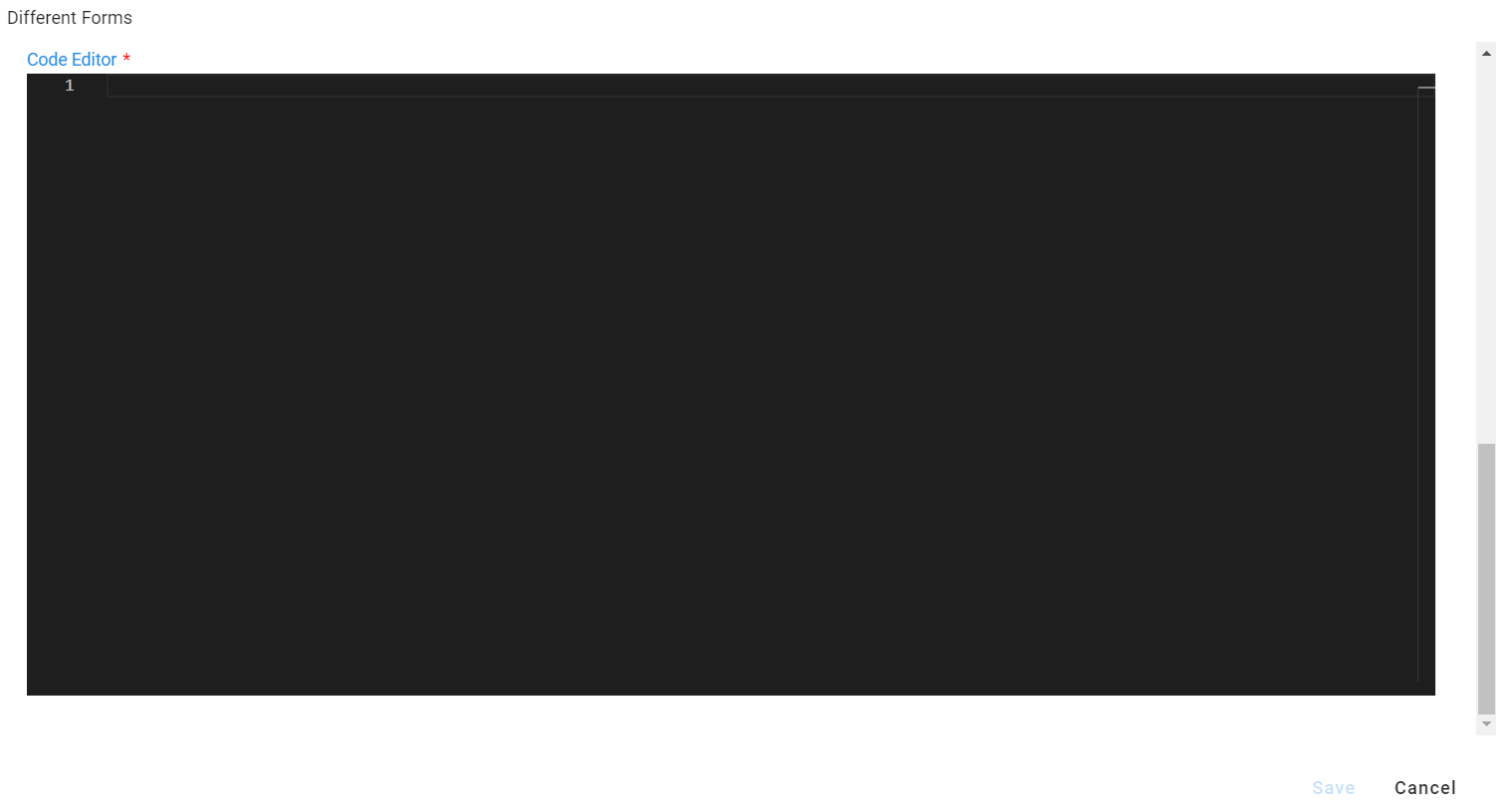

Exmple Screenshot

8. SELECTOR_TABLE

8.1 Description

A control displaying a table, allowing users to select one or more rows.

8.2 Use Case

Useful for selecting records from a list of options shown in a table format.

Example

{
  "help": "Devices",
  "dataType": "string",
  "required": false,
  "editable": true,
  "label": "Devices",
  "hidden": false,
  "fieldId": "Others",
  "controlType": "SELECTOR_TABLE",
  "controlPropertyList": [
    {
      "attribute": "column-key",
      "value": "device"
    },
    {
      "attribute": "selection",
      "value": "MULTIPLE"
    }
  ],
  "widget": {
    "title": "Device Details",
    "timebased": false,
    "max_width": 12,
    "height": 8,
    "min_width": 12,
    "extra_filter": "deviceSupports contains 'ipV4'",
    "stream": "device",
    "ts_column": "timestamp",
    "sorting": [],
    "columns": {
      "device": {
        "title": "Device",
        "key": true
      },
      "ip_address": {
        "title": "IP"
      }
    }
  }
}

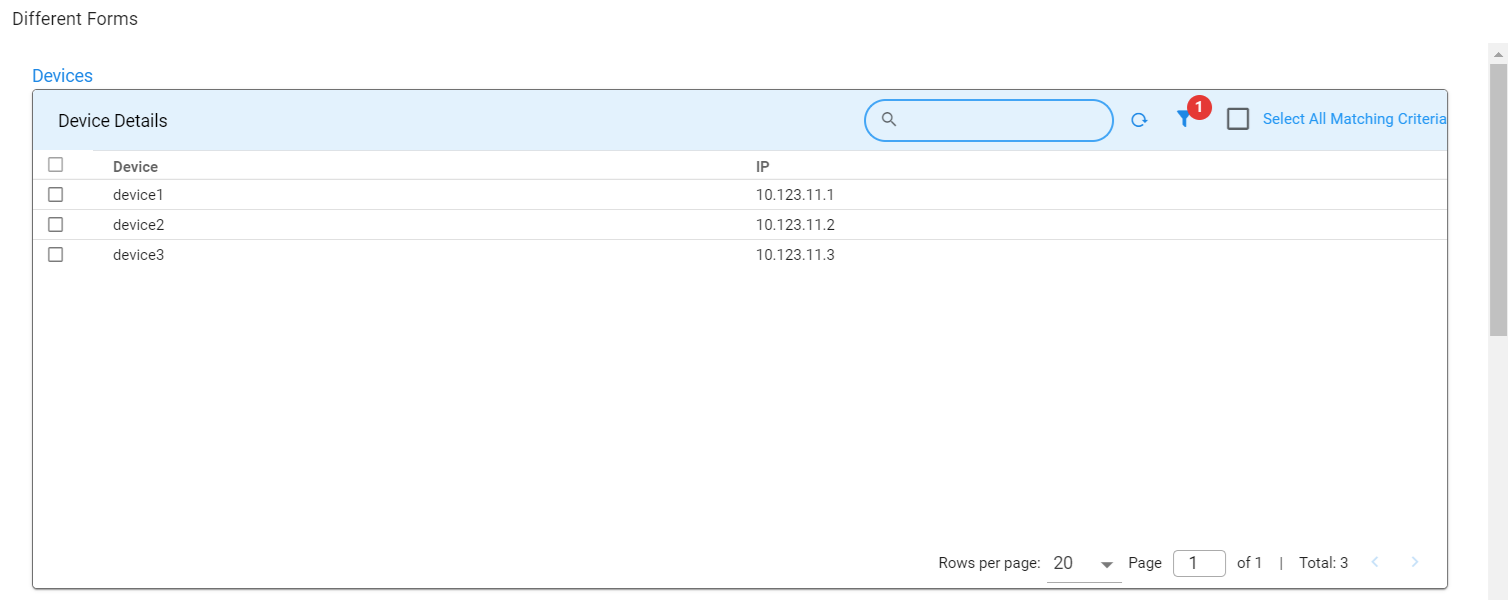

Example Screenshot

9. JSON_PROP_FIELD

9.1 Description

The JSON_PROP_FIELD control is used to create or edit JSON properties, especially useful when handling long text strings like HTML templates. This control allows users to input structured data in JSON format, making it ideal for scenarios where properties need to be flexible and editable in a key-value format.

9.2 Use Case

This control type is particularly helpful when dealing with complex data structures or properties that involve large text blocks, such as configurations, templates, or settings that are represented in JSON. For instance, it can be used to manage HTML templates or other text-heavy content in a structured format.

New properties in the JSON field now use a dynamic prefix based on the new-property-label-prefix control property. For example, if new-property-label-prefix is set to "Attachment," the labels will be "Attachment 1", "Attachment 2" etc. If no value is provided for new-property-label-prefix, the labels will default to "New 1", "New 2", etc. As shown in the example screenshot below

Example

{
  "fieldId": "json_test",
  "label": "User Dashboard Attachments",
  "description": "User Dashboard Attachments",
  "required": true,
  "isSecret": false,
  "dataType": "string",
  "hidden": false,
  "editable": true,
  "controlType": "JSON_PROP_FIELD",
  "controlPropertyList": [
    {
      "attribute": "layout-field-group-title",
      "value": "Testing Editor"
    }
  ]
}

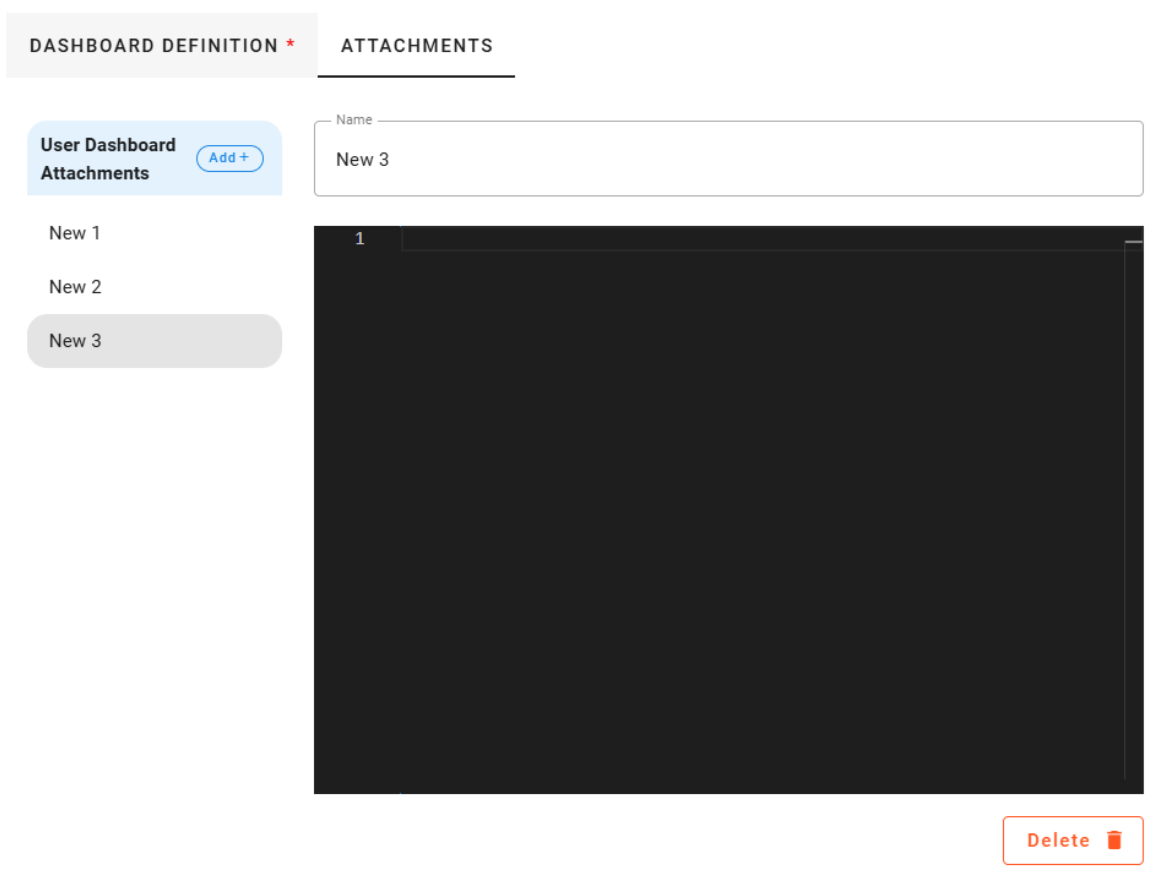

Example Screenshot

10. DATETIME_SCHEDULER_FIELD

10.1 Description

This field allows users to schedule tasks with selectable frequency (Once, Hourly, Daily).

10.2 Use Case

Enable users to configure automated task schedules with selectable frequency.

Example

{
"fieldId": "schedule",
"label": "Schedule Meeting",
"help": "Schedule",
"dataType": "string",
"controlType": "DATETIME_SCHEDULER_FIELD",
"controlPropertyList": [
{
"attribute": "frequencyOptions",
"value": [
            "Once",
           "Hourly",
           "Daily"
             ]
},
{
"attribute": "buildCronExpression",
"value": true
},
{
"attribute": "layout-group-id",
"value": "usertype-role1"
},
{
"attribute": "layout-percent",
"value": "50"
}
],
"hidden": false,
"editable": true,
"required": false
}

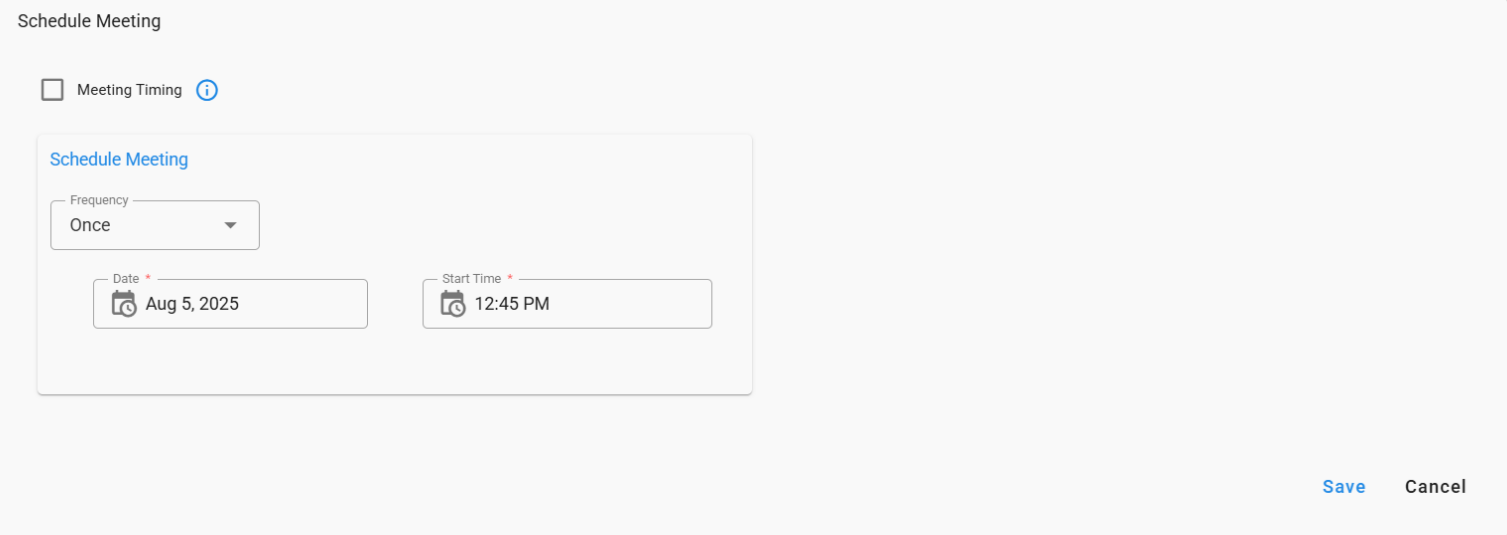

Example Screenshot

11. COLOR_PICKER

11.1 Description

Provides users with a color picker input to select and choose colors easily.

11.2 Use Case

Permits users to customize and personalize UI elements by selecting their preferred colors.

Example

{
"controlType": "COLOR_PICKER",
"editable": true,
"fieldId": "CP",
"help": "Color Picker",
"hidden": false,
"label": "Color Picker",
"required": true
}

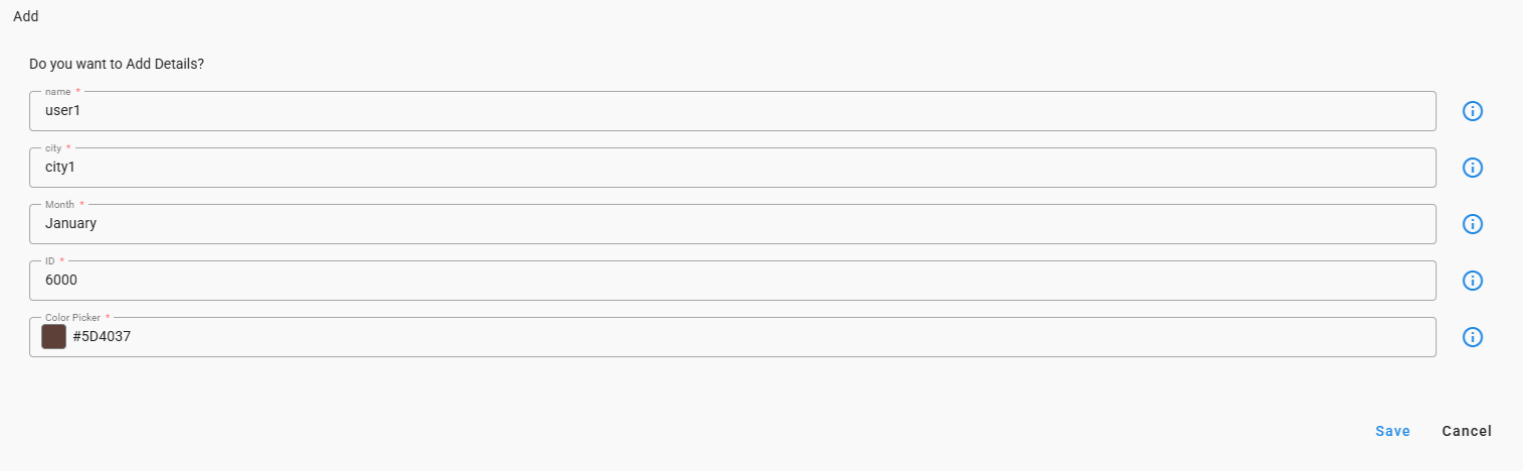

Example Screenshot

12. TEXT_AREA

12.1 Description

Offers a multi-line text input for users to enter detailed information, comments.

12.2 Use Case

Allows users to provide notes, observations, or additional context for forms, reports, or tasks.

Example

{
"fieldId": "notes",
"label": "Notes",
"help": "Notes",
"dataType": "string",
"controlType": "TEXT_AREA",
"hidden": false,
"editable": true,
"required": true
}

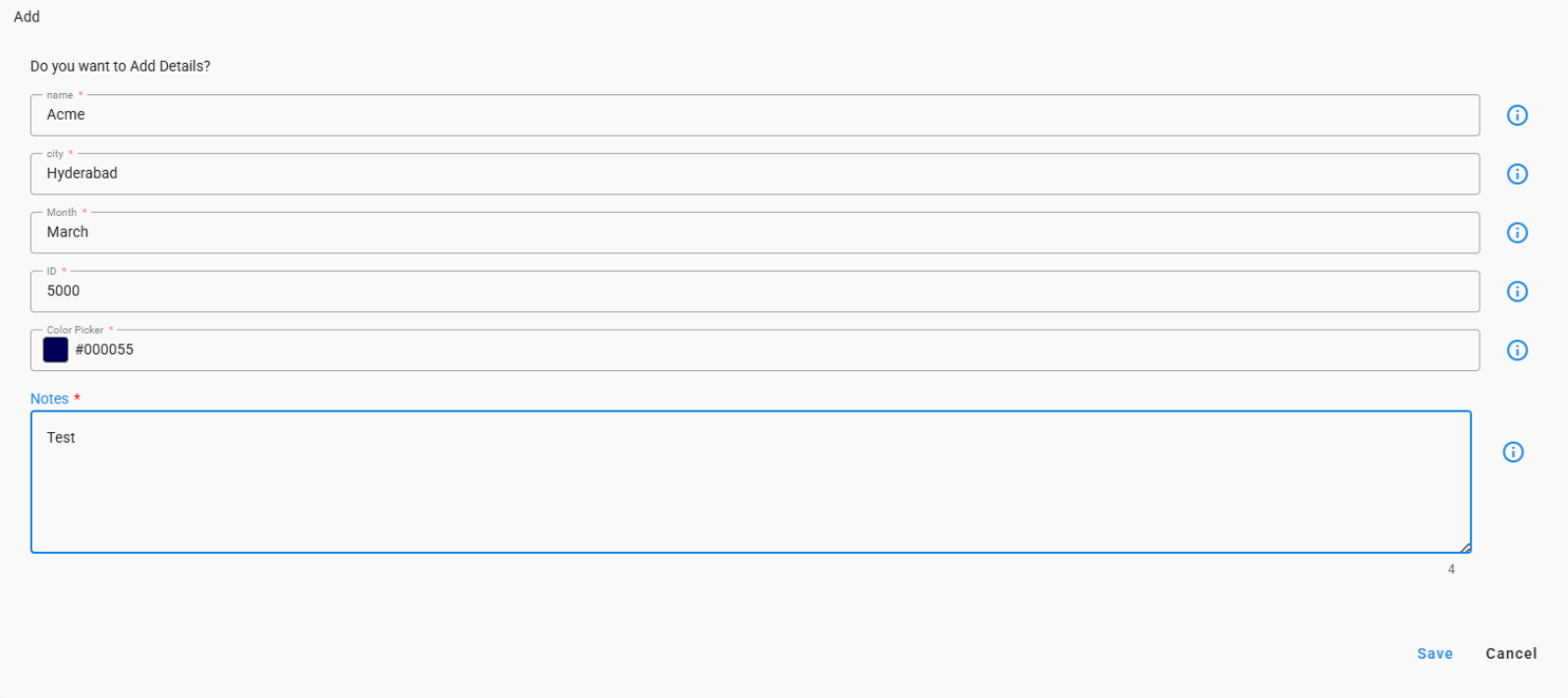

Example Screenshot

13. SELECTOR_DIALOG

13.1 Description

Allows users to select multiple values from a dynamic list through a selector dialog interface.

13.2 Use Case

Enables users to choose relevant device metrics for example tracking, reporting, or alert configuration.

Example

{
  "fieldId": "city",
  "label": "city",
  "help": "city",
  "key_attribute": true,
  "controlType": "SELECTOR_DIALOG",
  "selectionType": "MULTIPLE",
  "pstream": "mobility_kpi_metrics_data",
  "query_attributes": [
        "network_type",
        "region",
        "city"
  ],
 "server-validation": {
 "clear_attributes": [
        "clli_code",
        "device",
       "vpnname",
       "vpnid",
       "apn"
 ],
 "read_attributes": [
        "clli_code",
        "device",
        "vpnname",
        "vpnid",
        "apn"
 ]
 }
 }

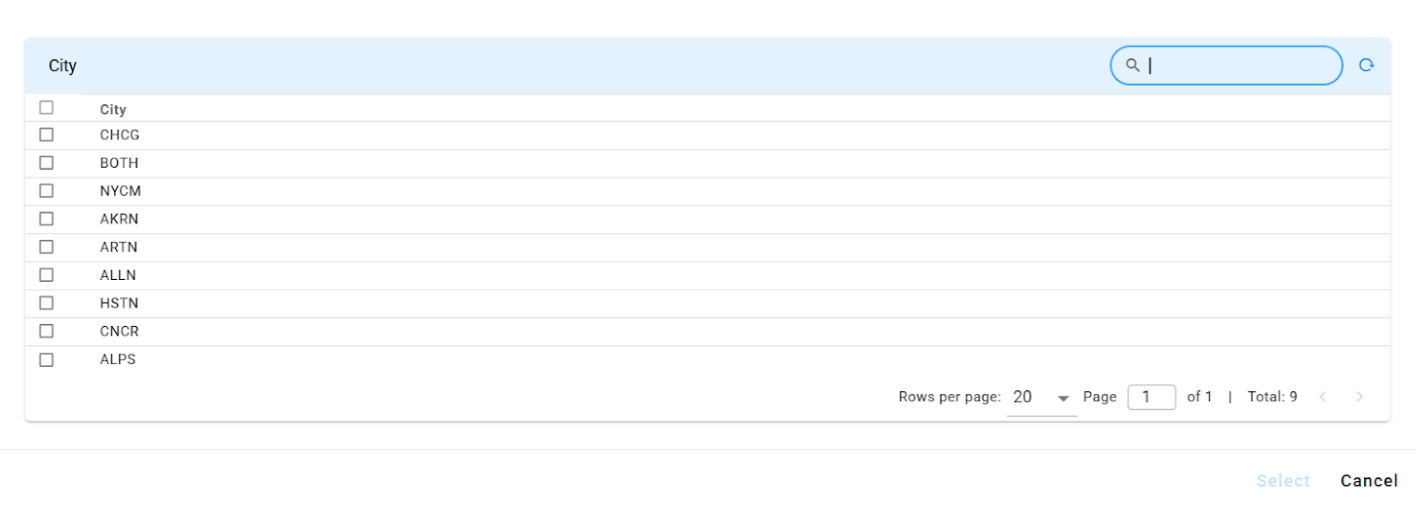

Example Screenshot

14. READ_ONLY_TABLE

14.1 Description

Displays a large, read-only table listing data entries.

14.2 Use Case

Allows users to view and reference a filtered list of records without the ability to edit the information.

Example

{
"dataType": "string",
"controlType": "READ_ONLY_TABLE",
"widget": {
"extends": "incidents:incident_tabular",
"extend_vars": {
"incidents_tabular_extra_filter": "$cfxqlFilter"
},
"timebased": false
},
"required": false,
"editable": false,
"label": "Incidents",
"hidden": false,
"controlPropertyList": [
{
"attribute": "table-size",
"value": "large"
}
],
"fieldId": "selectedIncidents"
}

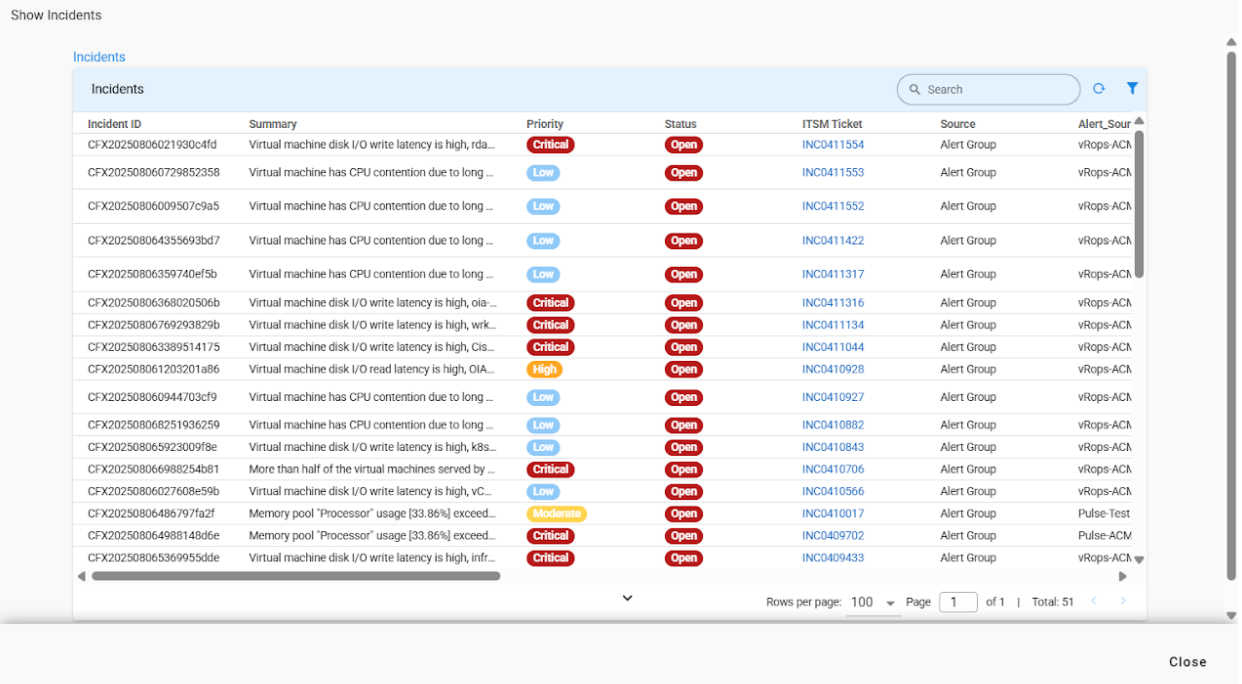

Example Screenshot

15. RATING_FIELD

15.1 Description

Rating field allows the user to choose a score on a defined range.

15.2 Use Case

Used when a quick satisfaction or quality score is needed, such as post-event feedback or ticket-resolution rating.

Example

{
  "controlType": "RATING_FIELD",
  "editable": true,
  "fieldId": "ratingField",
  "help": "Rating Field",
  "hidden": false,
  "label": "Rating Field (required)",
  "required": true
}

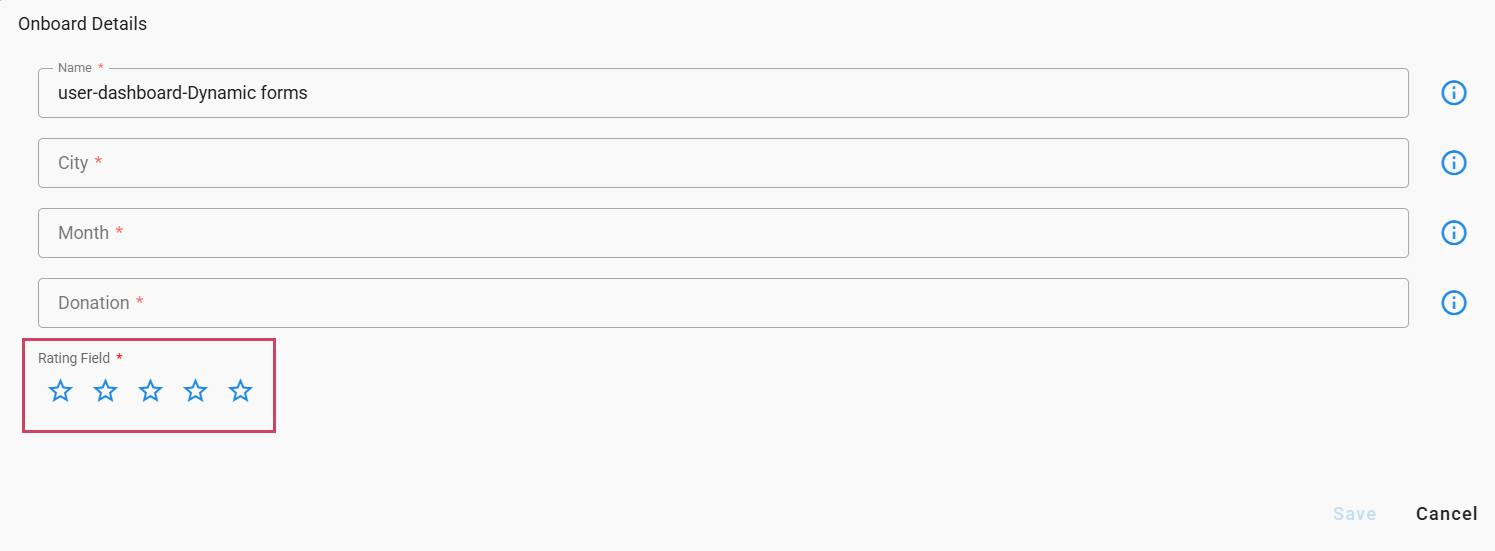

Example Screenshot

16. TREE_SELECTOR

16.1 Description

A tree-style list that features checkboxes next to each item, enabling users to select one or more items from various hierarchical levels.

16.2 Use Case

Ideal for scenarios where users must select items from a multi-tiered structure, such as categories, folders, or grouped datasets retrieved through an API endpoint.

Example

{
    "controlType": "TREE_SELECTOR",
    "editable": true,
    "fieldId": "treeSelector",
    "help": "Description of field",
    "hidden": false,
    "label": "Selector Tree",
    "required": true,
    "controlPropertyList": [
        {
            "attribute": "api-endpoint",
            "value": {
                "methodName": "invokeAppApi:getTreeData",
                "namespace": "io.cfx.dimensions.app",
                "params": [
                    {
                    "context": {},
                    "filters": []
                    }
                ],
                "parse-output": false,
                "service-name": "cfx-ui-mock-data",
                "stringified-params": true,
                "version": "*"
            }
        }
    ]
}

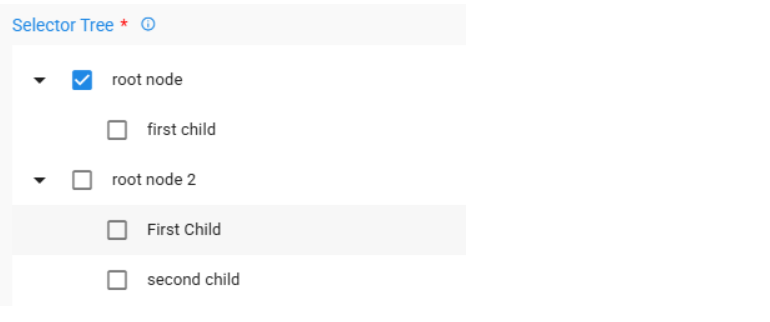

Example Screenshot

16.3 Configuration

The component can be configured via the following controlProperties in the controlPropertyList

16.3.1 selection-mode

This feature accepts two values independent (default) and leaf. When the independent value is selected, it permits the selection of the root node. However, if the leaf value is chosen, the selection of the root node is restricted.

Example

"controlPropertyList": [
              {
                "attribute": "selection-mode",
                "value":"independent"
              },
              ...

16.3.2 selection

This feature enables configuration for either single or multi-selection options, Takes SINGLE(default) and MULTIPLE as values

Example

"controlPropertyList": [
               {
                  "attribute": "selection",
                  "value":"SINGLE"
               },
               ...

17. HTML_FIELD

17.1 Description

A field designed for displaying and rendering HTML content.

17.2 Use Case

Utilize this when you need to present formatted text, hyperlinks, or other HTML content.

Example

{
  "controlType": "HTML_FIELD",
  "editable": true,
  "fieldId": "htmlField",
  "help": "Description of field",
  "hidden": false
}

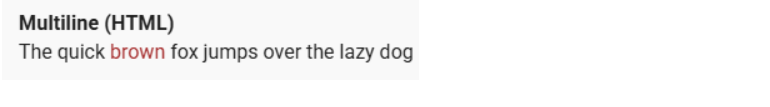

Example Screenshot

18. FILTER_FIELD

18.1 Description

A field utilized to filter data according to a specified list of values or attributes.

18.2 Use Case

Use this feature when you want to refine results by selecting one or more predefined values.

Example with Static LOV Values

{
  "fieldId": "selectioncriteria",
  "label": "Selection Criteria",
  "help": "Selection Criteria",
  "dataType": "json",
  "controlType": "FILTER_FIELD",
  "hidden": false,
  "editable": true,
  "required": false,
  "lovValues": [
      {
          "identifier": "sourcemechanism",
          "displayName": "Source Mechanism",
          "type": "TEXT"
      },
      {
          "identifier": "sourcesystemname",
          "displayName": "Source",
          "type": "TEXT"
      },
      {
          "identifier": "severitylabel",
          "displayName": "Severity",
          "type": "TEXT"
      }
  ]
}

Example with Dynamic LOV Values Using API Endpoint

{
    "controlType": "FILTER_FIELD",
    "editable": true,
    "fieldId": "filterField_with_api_end_point,
    "help": "Filter field with api endpoint ",
    "hidden": false,
    "label": "Filter Field with api end point",
    "required": false,
    "controlPropertyList": [

        {
            "attribute":"api-endpoint",
            "value": {
                "methodName": "getFilterFieldLovs",
                "namespace": "io.cfx.dimensions.app",
                "params": [
                    {
                        "context": {},
                        "filters": [],
                        "params": {},
                        "url": ""
                    }
                ],
                "parse-output": false,
                "service-name": "saas-reports",
                "version": "*"
            }
        }
    ]

}

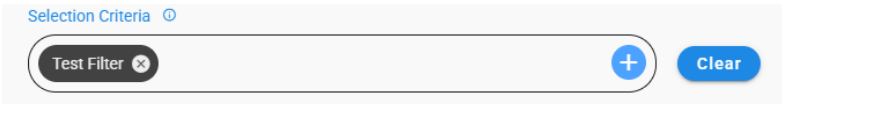

Example Screenshot

19. QUERY_FIELD

18.1 Description

A field that accepts a CFXQL query, enabling advanced and accurate data filtering.

18.2 Use Case

Use this feature when you require flexible, custom, or complex filter conditions that standard filters cannot accommodate.

Example

{
  "fieldId": "filter",
  "label": "Enter CFXQL Query",
  "help": "Enter CFXQL Query",
  "controlType": "QUERY_FIELD",
  "hidden": false,
  "editable": true,
  "required": false
}

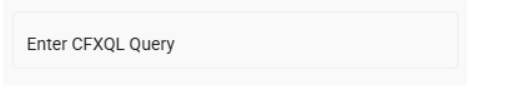

Example Screenshot

20. DOWNLOAD_BUTTON

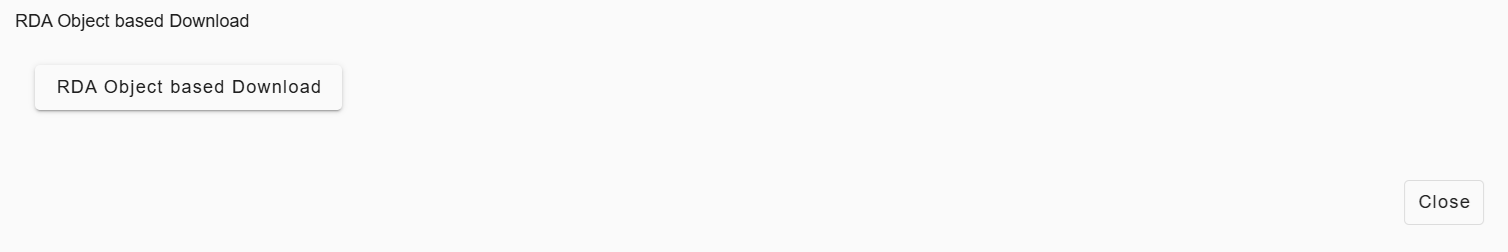

20.1 RDA Object Based

20.1.1 Description

A download button that retrieves files from RDA objects using the specified folder and object name.

20.1.2 Use Case

Use this feature when users need to download files stored in RDA objects.

Example

{
  "dataType": "string",
  "required": false,
  "editable": false,
  "hidden": false,
  "label": "Download Documentation",
  "folder": "default",
  "objectName": "download_button.md",
  "controlType": "DOWNLOAD_BUTTON",
  "fieldId": "csv_download_template"
}

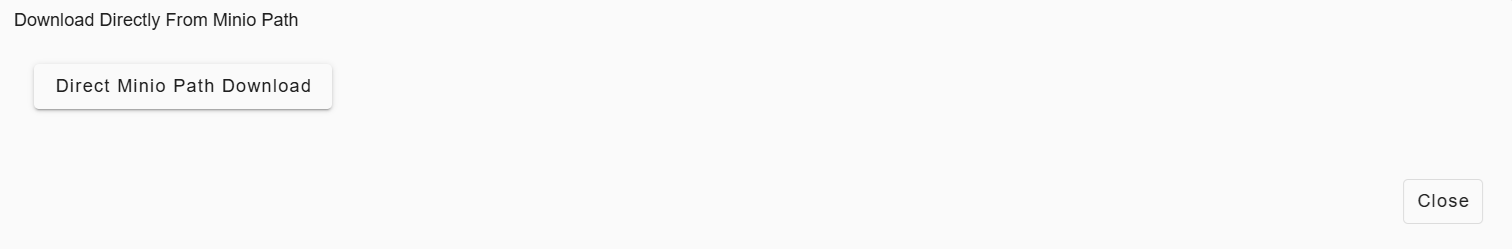

20.2 Direct Minio Path

20.2.1 Description

A download button that facilitates file download using a direct Minio path specified in the control configuration.

20.2.2 Use Case

Use this feature when the file path is known in advance and users need to download a specific output such as reports, logs, or generated artifacts.

Example

{
  "dataType": "string",
  "required": false,
  "editable": false,
  "hidden": false,
  "label": "Download Report",
  "controlType": "DOWNLOAD_BUTTON",
  "fieldId": "report_download",
  "output_minio_path": "reports/2026/january/report_12345.pdf"
}

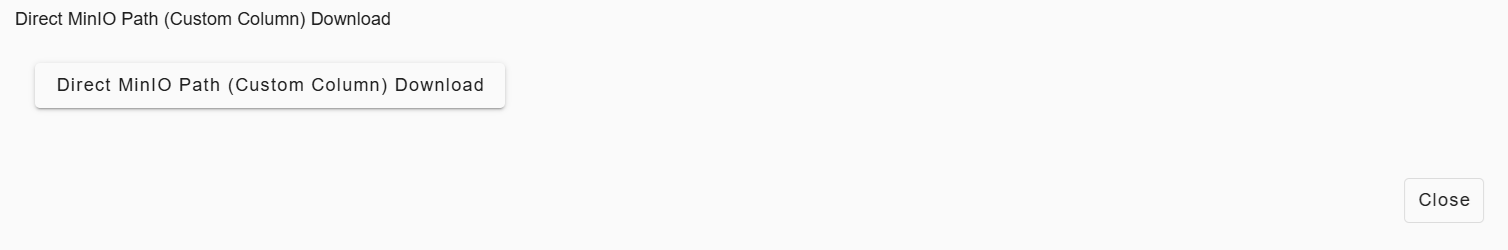

20.3 Direct Minio Path (custom_path)

20.3.1 Description

A download button that dynamically resolves the Minio file path using a custom column value.

20.3.2 Use Case

Use this feature when each row or record has a different file to download, such as per-device reports, or record-specific artifacts.

Example

{
  "dataType": "string",
  "required": false,
  "editable": false,
  "hidden": false,
  "label": "Download Report From Direct Minio Path – Custom Column",
  "controlType": "DOWNLOAD_BUTTON",
  "fieldId": "report_download_details",
  "minio_path_column": "custom_path",
  "custom_path": "reports/2026/january/report_123.pdf"
}

21. CHIP_FIELD

21.1 Description

An input field that transforms each entered value into a chip upon pressing Enter, enabling users to add multiple chips consecutively.

21.2 Use Case

Use this feature when you need to enter multiple short inputs, such as tags, keywords, or identifiers for an item.

Example

{
    "controlType": "CHIP_FIELD",
    "editable": true,
    "fieldId": "chipField",
    "help": "Description of field",
    "hidden": false,
    "label": "Chip Field",
    "required": false,
    "controlPropertyList": [
        {
            "attribute": "layout-field-group-title",
            "value": "Selector Type Field 1"
        }
    ]
},

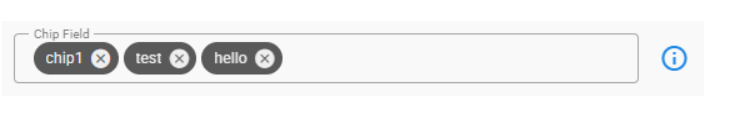

Example Screenshot

22. DATE_TIME_FIELD

22.1 Description

A field designed to capture both date and time within a single input.

22.2 Use Case

Use this feature when you need to provide a complete timestamp instead of just a date or a time.

Example

{
  "controlType": "DATE_TIME_FIELD",
  "editable": true,
  "fieldId": "datetimeField",
  "help": "Description of field",
  "hidden": false,
  "label": "Date/Time Field",
  "required": false
},

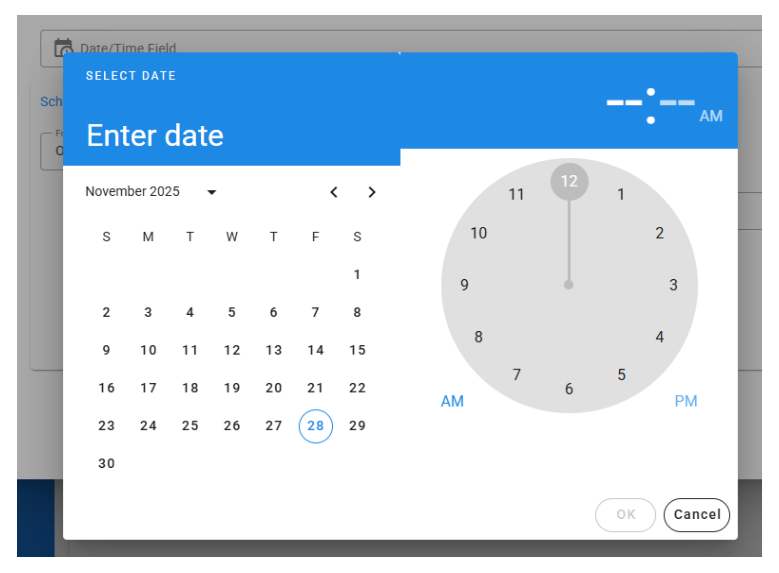

Example Screenshot
